Understanding Heat Flow and Geothermal Energy in the UK

Most of the usable ground source energy beneath our feet is accumulated solar energy stored over many years within the upper layers of the Earth's crust. A smaller but continuous contribution comes from geothermal flux, the natural flow of heat rising from the Earth's core.

Together, these processes create a stable underground temperature that can be used responsibly as a renewable resource, supporting occupant comfort while enabling low carbon buildings.

This page explains, in clear and practical terms, how heat moves through the ground, the geological factors that influence performance, and why understanding these fundamentals matters when designing Ground Source Heat Pump systems.

By working with the Earth's natural heat balance, we can deliver resilient and efficient heating in winter alongside effective cooling in summer.

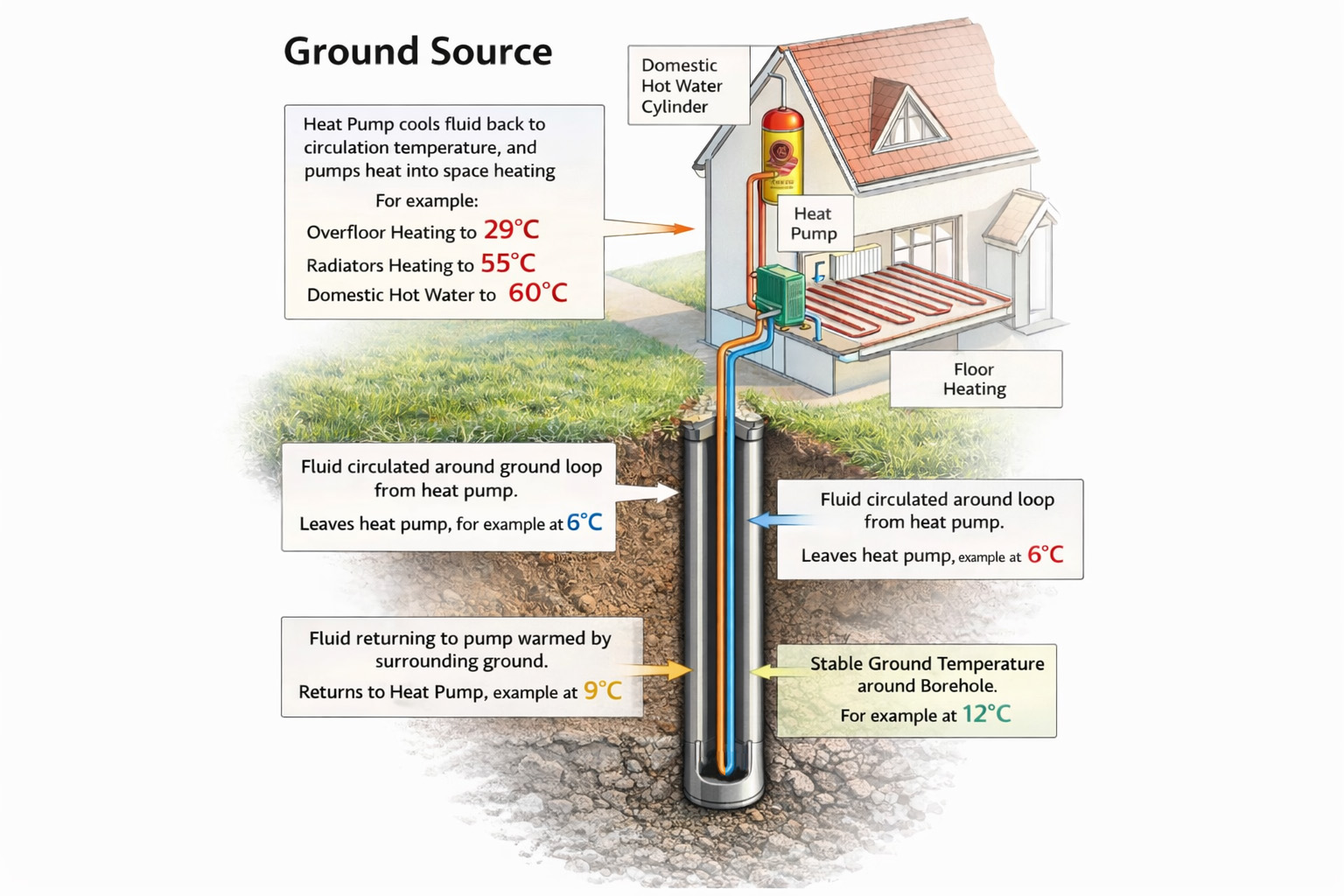

Ground Source Heat Pump systems

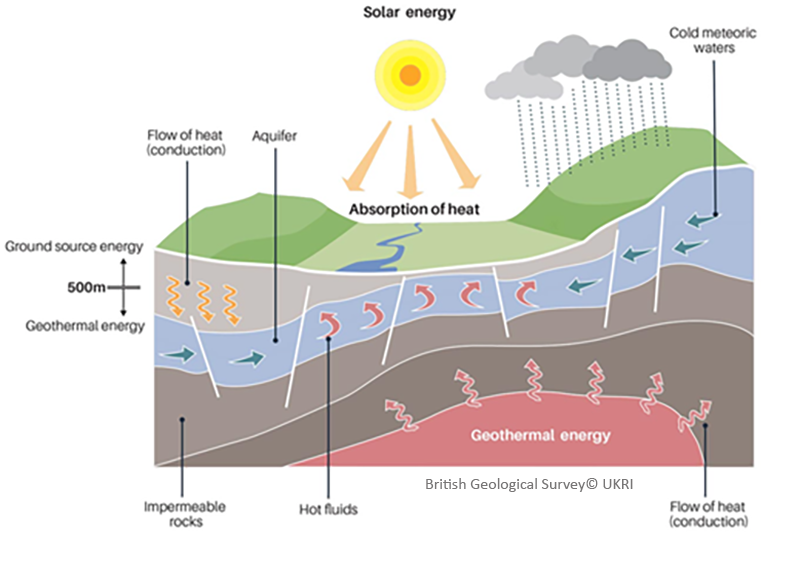

Factors Affecting Heat Flow in the UK

The interaction between solar radiation, surface conditions, groundwater, and deeper geothermal heat flow is illustrated.

The ability of the ground to store and moderate temperature fluctuations is due to its thermal inertia. Unlike air temperatures, which respond rapidly to changes in solar radiation, the ground responds more slowly, creating a thermal buffer. As a result, daily and seasonal temperature swings are dampened with increasing depth.

After sunset, the ground releases stored heat to the atmosphere, but not all of it dissipates immediately. Some energy is retained and carried over, allowing the ground at depths beyond the influence of short-term weather variation to reach a near-equilibrium temperature that approximates the mean annual air temperature at that location.

For the purposes of Ground Source Heat Pump design, the ground acts as both a collector and a store of solar energy. During the heating season, heat is extracted from this store, and in systems with passive or active cooling, rejected heat during the summer can be absorbed back into the ground.

This cyclical exchange supports seasonal thermal balance and enhances the efficiency and long-term performance of ground source heat pump systems.

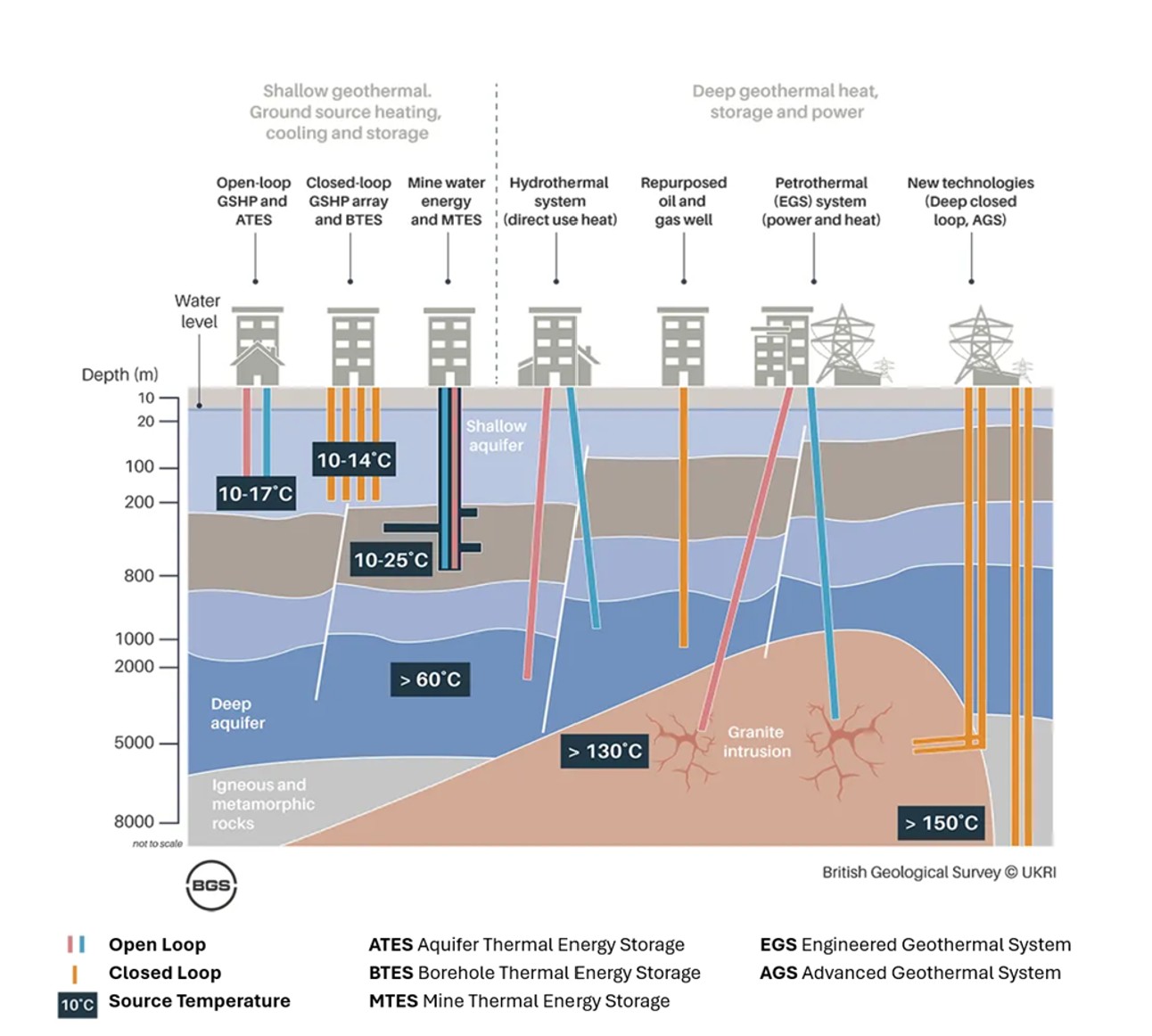

Geothermal Energy - Geological processes

Although most Ground Source Heat Pump systems rely on solar-derived energy stored near the surface, geothermal heat originating within the Earth continues to influence the stable temperature field below the zone of seasonal variation.

The internal heat of the Earth arises from a combination of geological and planetary processes. The dominant source is the radioactive decay of isotopes such as uranium, thorium and potassium (and their decay products, including radium) within the Earth's crust, which releases heat over geological timescales.

Additional contributions come from residual heat retained from planetary formation, gravitational differentiation during early core development, and minor tidal heating caused by interactions with the Moon and Sun.

While geothermal heat is present beneath all areas of the Earth's surface, the depth and temperature of usable energy vary significantly depending on geology.

In the UK, deep geothermal resources suitable for electricity generation are limited to specific regions, but low-grade geothermal heat is present everywhere and can be effectively harnessed using ground source heat pump systems.
